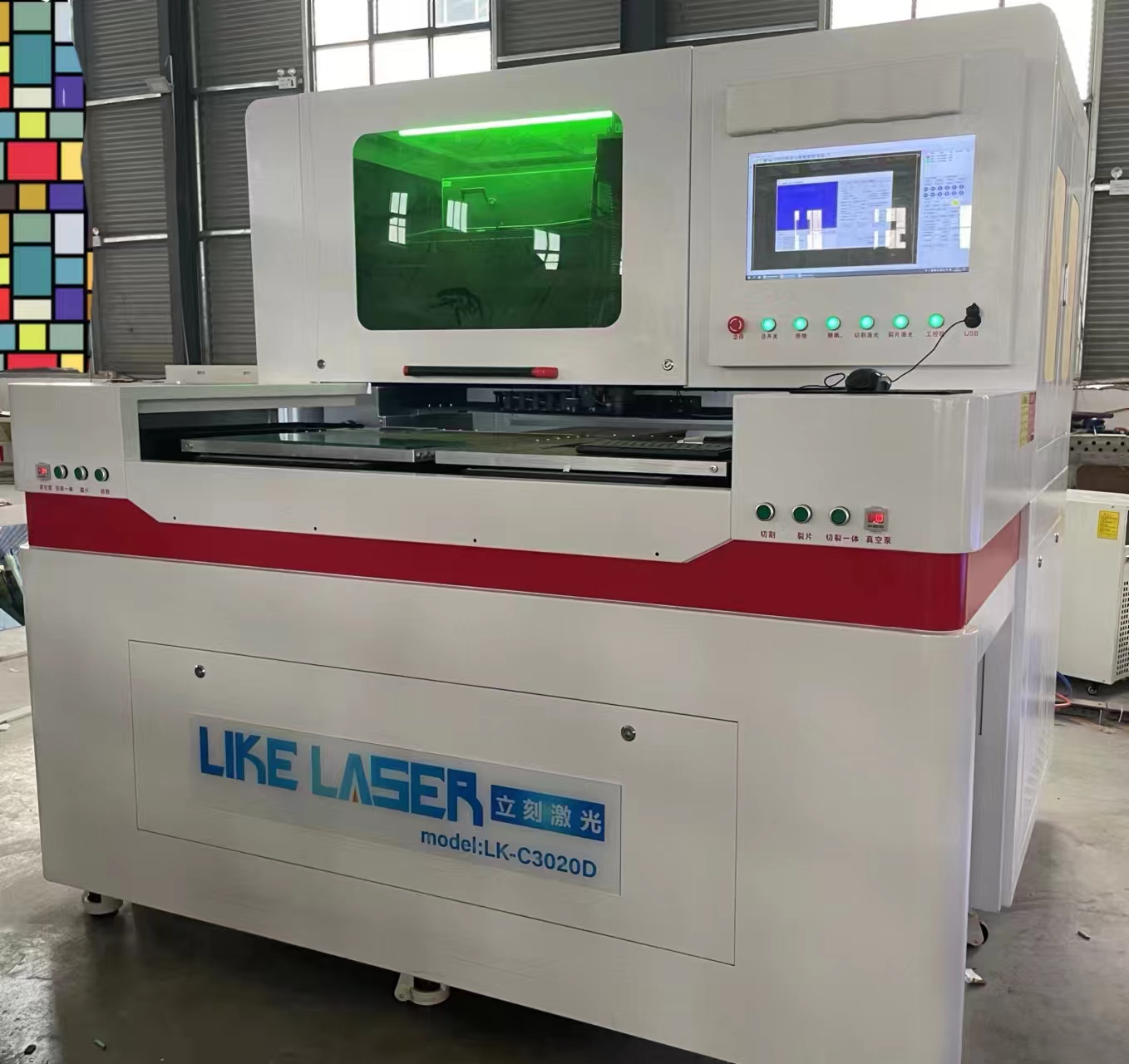

LK-C3020D Laser glass cutting machine
Equipment name: Laser glass cutting machine ;
Contact person: Gavin
Contact information:+8618232160688
Processing Ability Simple Show | |||||
Cutting speed m/min | Cutting Thickness | Cutting Format | Cutting Mode | Power Consumption/H | Consumables/day |
7-20M | 0-50MM | 600-3000MM | PS/CO2 | 4000W | 0 |

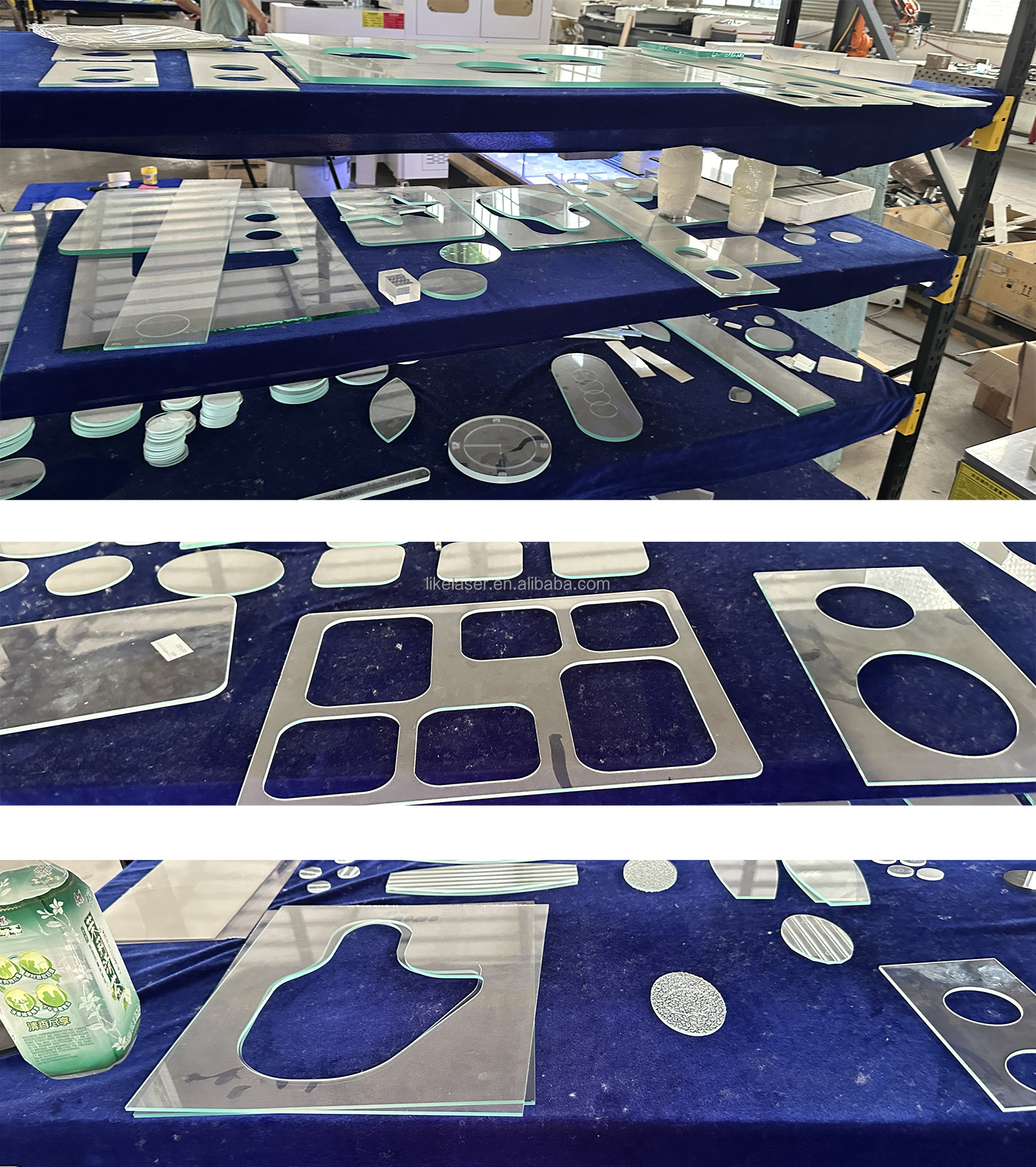

Scope of application:
1、reinforced and non-reinforced glass cutting, such as: mobile phone glass cover plate, car glass cover plate, camera glass cover plate.
2、sapphire glass cutting, such as: mobile sapphire cover plate, camera sapphire glass cover plate, sapphire light strip (LED light strip).
3、LCD glass cutting, such as: shaped LCD screen inverted R/U/C Angle, LCD screen cutting.
4、other optical glass cutting, such as: filter cutting, mirror cutting.
5、ordinary glass cutting, such as high borosilicate, quartz glass, white glass, car mirrors, باتھ روم گلاس, etc.
6 、cutting surface screen: single-sided curve (1200-2000), double-sided curve (400-2000) (optional).
The Biggest Feature
Laser Source
The light source is a high-power picosecond laser, and the core devices such as the core seed source are provided by international first-line manufacturers, and the use is stable;
Cutting Head
non-contact cutting, autocratic glass cutting head, lens all imported from the United States, light spot fine, deep focus, minimum focus spot <2um, focal depth length up to 3mm, the maximum cutting thickness of 30mm and no edge breakage;
Cutting Platform
cutting platform, optical platform base using natural marble, after two fine grinding processing, accuracy level reached 00
Linear Motor+Magnetic Levitation
X/Y axis motor adopts linear motor, German digital grating ruler, Taiwan screw and guide rail, Israel drive, 24 hours of troublefree operation;
Vacuum Pump Suction
the use of high negative pressure vacuum pump adsorption products to ensure positioning stability, the cutting process of the material does not move, do not move;
CCD
device alignment CCD and telecentric vision lens, accurate identification of circle, cross and other Mark points;

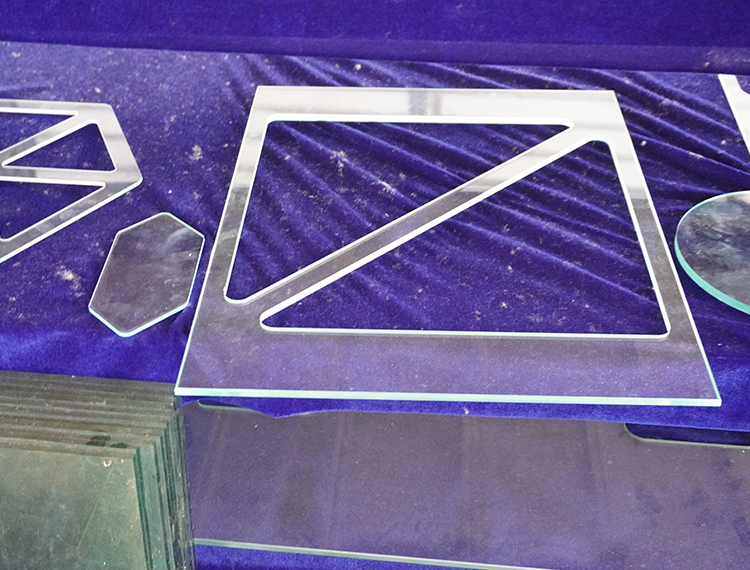

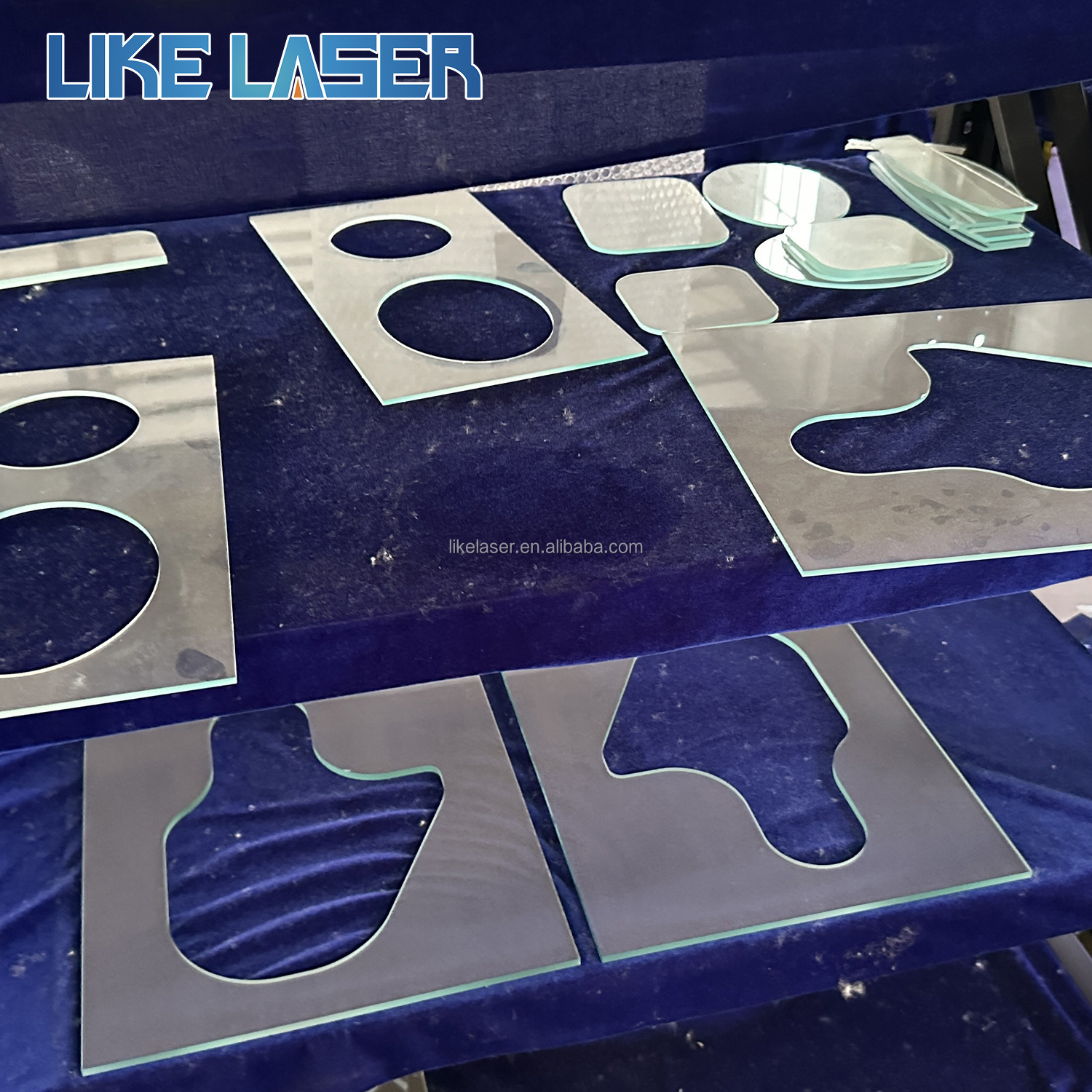

Irregular Cutting
for the shape cutting processing to no dead Angle cutting, can be cut to any shape material;
LIKELASER Software
Immediate laser ultra fast glass laser cutting machine, using independently developed AI control system
Guarantee
LIKE LASER warrants its products and parts against defects in materials or workmanship for two (2) years from the original date of receipt.
Advantages
LIKELASER ultra-fast glass laser cutting machine, using self-developed AI control system, high-endcustom picosecond light source, double drive linear motor, marble work surface, cutting oneprocessing, accuracy up to ± 2 microns. Compared with the traditional CNC/ water knifeprocessing has irreplaceable advantages, especially in the shape cutting, fine cutting,non-destructive cutting CNC, is completely incompetent, laser cutting is a non contact cutting, withsimple operation, automatic, no consumables, no pollution, no degree, no edge, low powerconsumption. High efficiency (cutting speed up to 15m/min), and the traditional CNC cutting thereare ring mirror pollution, bit loss, edge collapse, scrap rate is high, slow speed and other defects, and LIKELASER Jinway glass laser cutting machine to solve all the above problems at one time, greatly saving manufacturing costs for processing manufacturers, improve product profits.
درخواست
Product Paramenters
Standard Size Laser Glass Cutting Machine | |||
Model | LK-GC7060D | LK-GC8060D | LK-GC1380A |
Size | 700*600ملی میٹر | 800*600ملی میٹر | 1300*800ملی میٹر |
Workbench | 2 | 2 | 1 |
Standard Size Laser Glass Cutting Machine | |||
Model | LK-GC2010D | LK-GC2412D | LK-GC3020A |
Size | 2000*1000ملی میٹر | 2400*1200ملی میٹر | 3000*2000ملی میٹر |
Workbench | 1 | 1 | 1 |
Cutting Light Source | ||
1 | Laser type | Picosecond pulse laser(the seed source uses the world’s mainstream brands such as German Nlight) |
2 | Wave length | 1064nm, beam quality: M2<1.3 |
3 | Pulse length | <10PS; Pulse frequency:1Hz-1000kHz |
4 | Cooling mode | Cooling method: water cooling |
Segmented light source | ||
1 | Laser type | CO2 |
2 | Wave length | 1064nm, beam quality: M2<1.3 |
3 | Pulse length | <30PS; Pulse frequency: 1Hz-1000kHz |
4 | Cooling mode | Cooling method: water cooling |
Cutting head | ||
1 | Focusing head | Bezier focus head |
2 | Number of cutting heads | Single head |
3 | Focusing spot | <2um |
Visual counterpoint system | ||
1 | Camera | 5 million CCD |
2 | illuminant | Ring-type light source with adjustable brightness |
Quality Control
Quality is our paramount mission that underpinning the lifeline of the company, and it is the most important factor to maintain long-term business relationships with customers. Special attention is paid to the quality of every unit of Large size laser machine. Standard quality control system and team are responsible to insure the product quality in every process with different instruments like laser interferometer and laser power meter. The laser interferometer and laser collimator are used through the mechanical assembling process. In the laser assembling process,the laser power meter and optical microscope are adopted.
Certificate/Factory Inspection
Each machine has passed the ISO CE IAF certification.

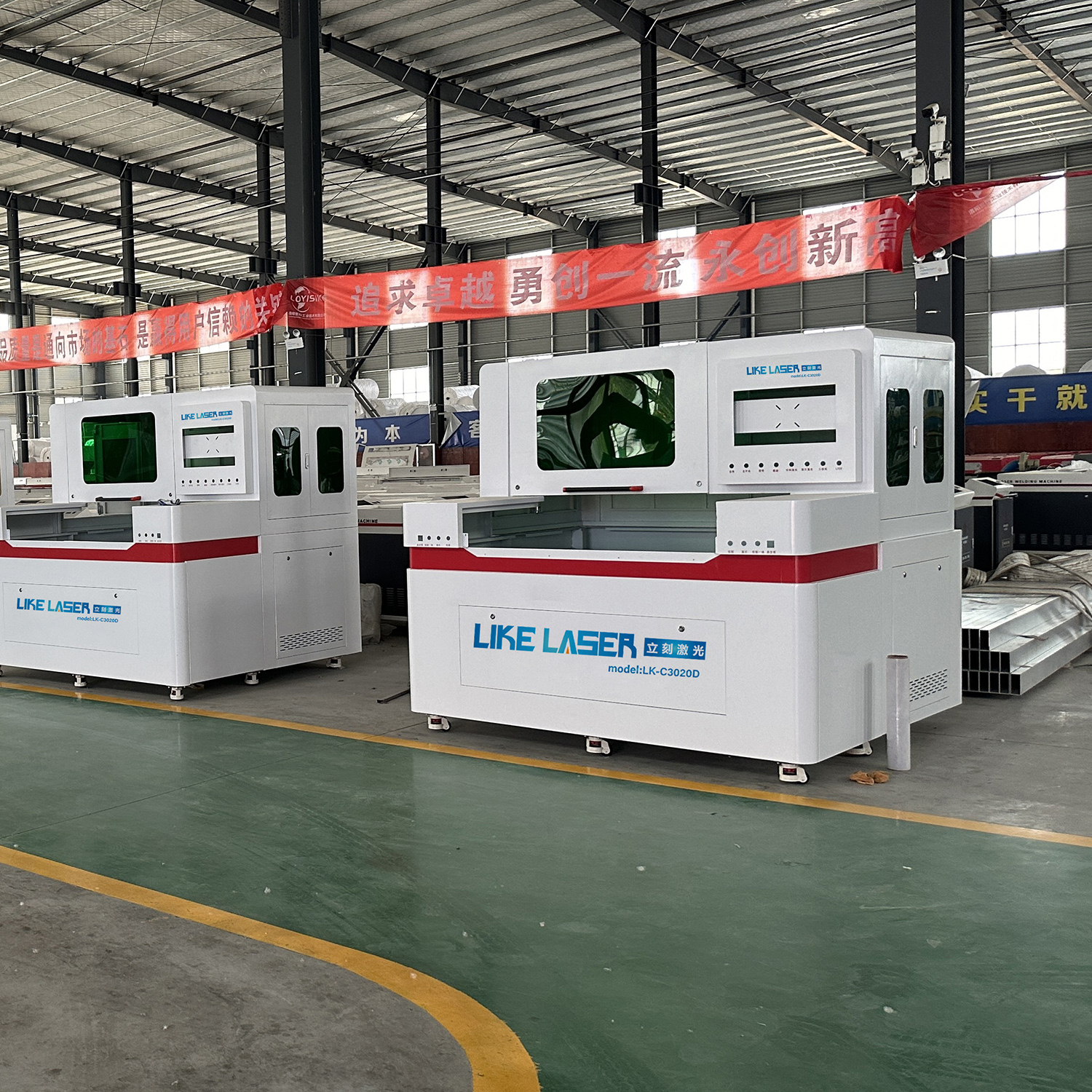

ہماری فیکٹری
LIKE LASER جولائی میں قائم کیا گیا تھا۔ 2003 Shijiazhuang میں, ہیبی صوبے کا دارالحکومت, چین. بڑے سائز کے لیزر سسٹمز اور چپس کی خود تحقیق اور ترقی یہ شمالی چین میں لیزر آلات بنانے والے سب سے بڑے اداروں میں سے ایک ہے۔. کمپنی کی اہم مصنوعات ہیں۔:Glass laser cutting machine,Mirror laser sandblasting machine, Mirror laser paint removal machine,Large format glass engraving machine. Having worked in the glass industry for many years.After 17 ترقی کے سال, کمپنی نے ISO90001 انٹرنیشنل کوالٹی سسٹم سرٹیفیکیشن پاس کیا ہے۔, EU CE سرٹیفیکیشن اور US سرٹیفیکیشن.
Packing And Shipment
1)Packaging:Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.2)Shipping:We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also providetrain transport, especially to Russia, Ukraine and other inland countries.3)Payment:We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
Clients / Visits
گرمجوشی سے آپ کو ہماری فیکٹری کا دورہ کرنے کا خیرمقدم کرتے ہیں۔!!!
گرمجوشی سے خوش آمدید آپ مزید معلومات کے لیے براہ راست ہم سے رابطہ کریں۔!!!
ہماری خدمات
1. سروس لائک لیزر خریدیں اس کے پاس ایک خصوصی اور موثر کام کرنے والی ٹیم ہے۔ اگر آپ لیزر مشین پر نئے ہیں, ہم آپ کو پورے کام کی خصوصی تجویز دیں گے۔ .2. شپنگ سروس لائک لیزر کے پاس ایک خصوصی اور خودمختار شعبہ ہے جو صرف خریدار کے سامان کے لیے شپنگ کا بندوبست کرتا ہے۔ ورکرز T/T کو جانتے ہیں۔,L/C Items well.all Exported documents could be made perfectly .3.Installation ServiceInstallation Services are available with all LIKE LASER Company machines.We will dispatch technician to The Buyer’s factory to installation and preparation of machines.4.Clients Training ServiceLIKE LASER advises the buyer could send own technician come to our factory to learn how to operate machines.LIKE LASER Company technician will teach and train the learners hand by hand till he can operate machine by himself.5.After Sales ServiceLIKE LASER machines guarantee time is 2 year, سوائے قابل استعمال حصوں کے;اکثر پوچھے گئے سوالاتمجھے ہمارے بڑے سائز کی لیزر مشین پر انکوائری بھیجنے سے پہلے, it is better for you to provide me the following information1)آپ کا دھاتی یا غیر دھاتی مواد کا سائز. کیونکہ ہماری فیکٹری میں, ہمارے پاس ورکنگ ایریا کے مطابق مختلف ماڈلز ہیں۔2)The thickness of glass
3)TPlease tell me your industry and product photos
