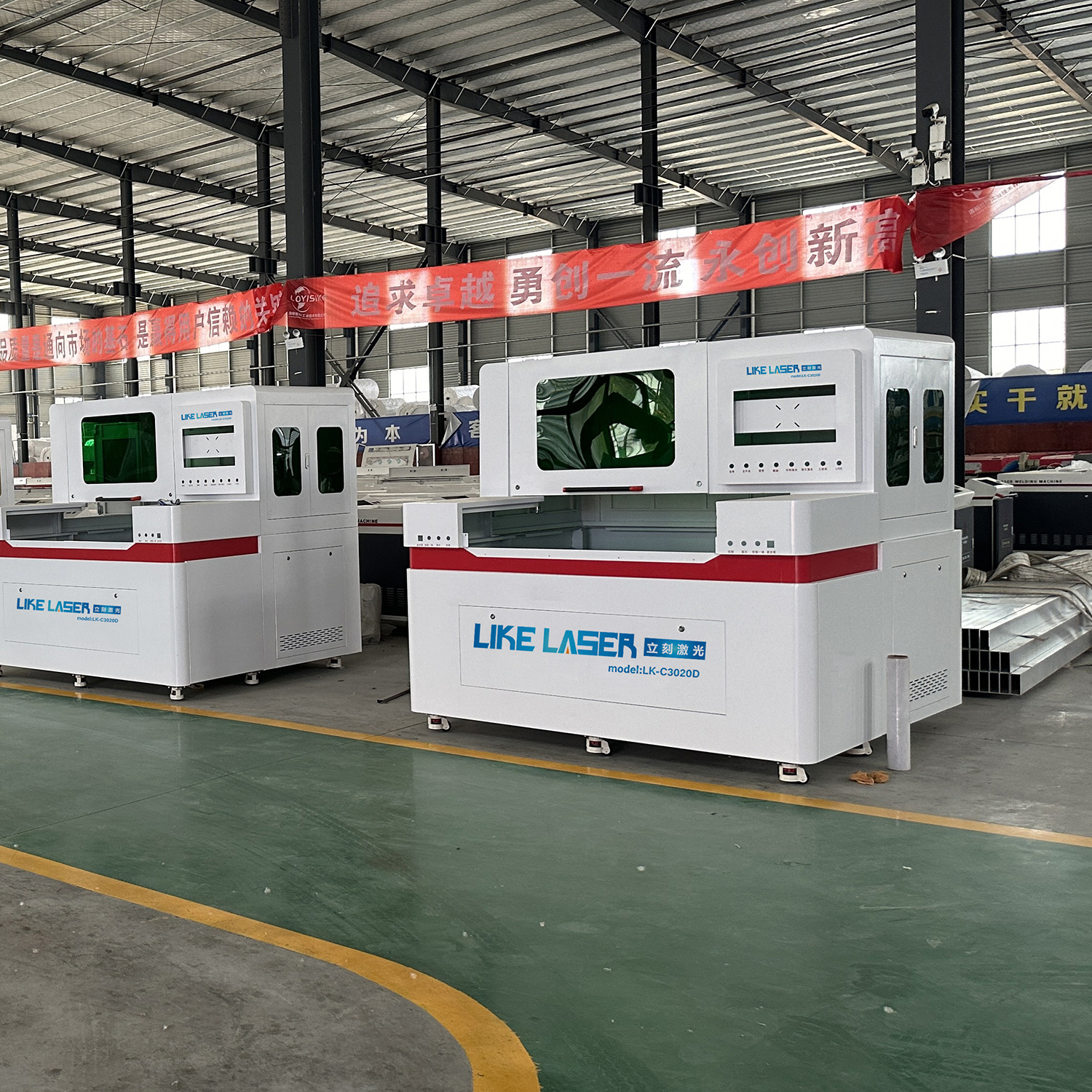

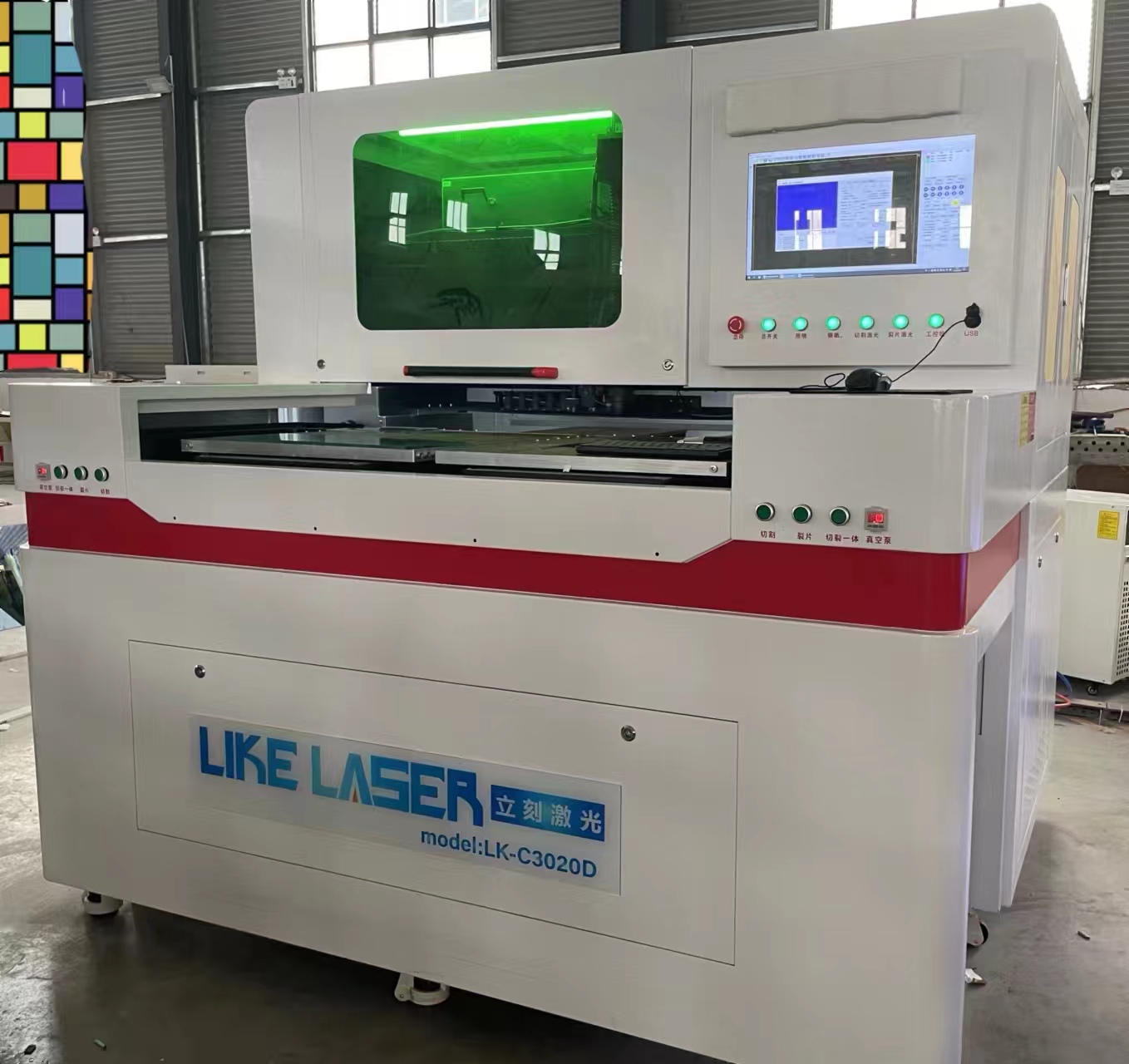

LK-C3020D Laser glass cutting machine
Equipment name: Laser glass cutting machine ;
Contact person: Gavin
Contact information:+8618232160688
Processing Ability Simple Show | |||||
Cutting speed m/min | Cutting Thickness | Cutting Format | Cutting Mode | Power Consumption/H | Consumables/day |
7-20M | 0-50MM | 600-3000MM | PS/CO2 | 4000W | 0 |

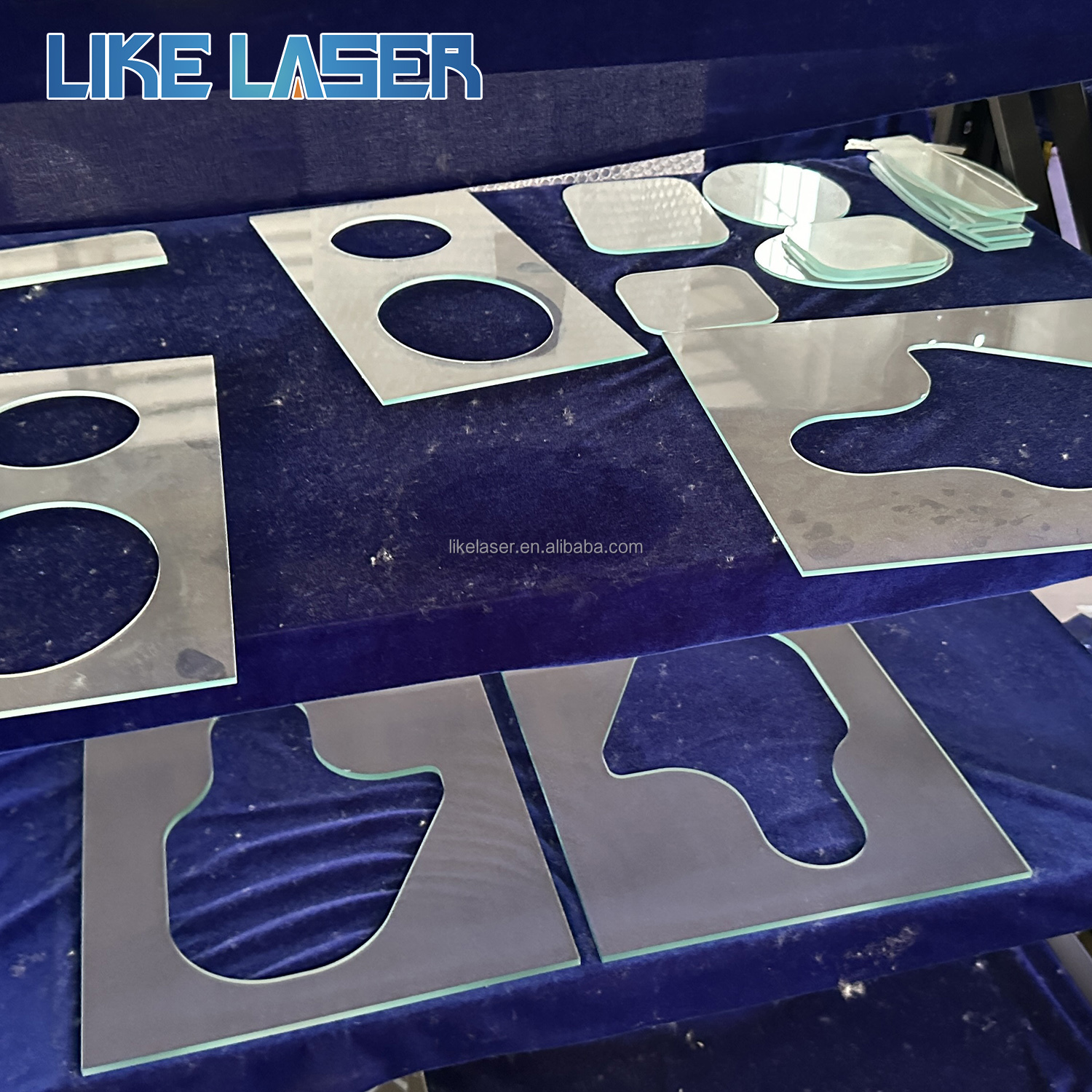

Scope of application:
1、reinforced and non-reinforced glass cutting, such as: mobile phone glass cover plate, car glass cover plate, camera glass cover plate.
2、sapphire glass cutting, such as: mobile sapphire cover plate, camera sapphire glass cover plate, sapphire light strip (LED light strip).
3、LCD glass cutting, such as: shaped LCD screen inverted R/U/C Angle, LCD screen cutting.
4、other optical glass cutting, such as: filter cutting, mirror cutting.
5、ordinary glass cutting, such as high borosilicate, quartz glass, white glass, car mirrors, bathroom glass, enz.
6 、cutting surface screen: single-sided curve (1200-2000), double-sided curve (400-2000) (optional).
The Biggest Feature
Laser Source
The light source is a high-power picosecond laser, and the core devices such as the core seed source are provided by international first-line manufacturers, and the use is stable;
Cutting Head
non-contact cutting, autocratic glass cutting head, lens all imported from the United States, light spot fine, deep focus, minimum focus spot <2een, focal depth length up to 3mm, the maximum cutting thickness of 30mm and no edge breakage;
Cutting Platform
cutting platform, optical platform base using natural marble, after two fine grinding processing, accuracy level reached 00
Linear Motor+Magnetic Levitation
X/Y axis motor adopts linear motor, German digital grating ruler, Taiwan screw and guide rail, Israel drive, 24 hours of troublefree operation;
Vacuum Pump Suction
the use of high negative pressure vacuum pump adsorption products to ensure positioning stability, the cutting process of the material does not move, do not move;
CCD
device alignment CCD and telecentric vision lens, accurate identification of circle, cross and other Mark points;

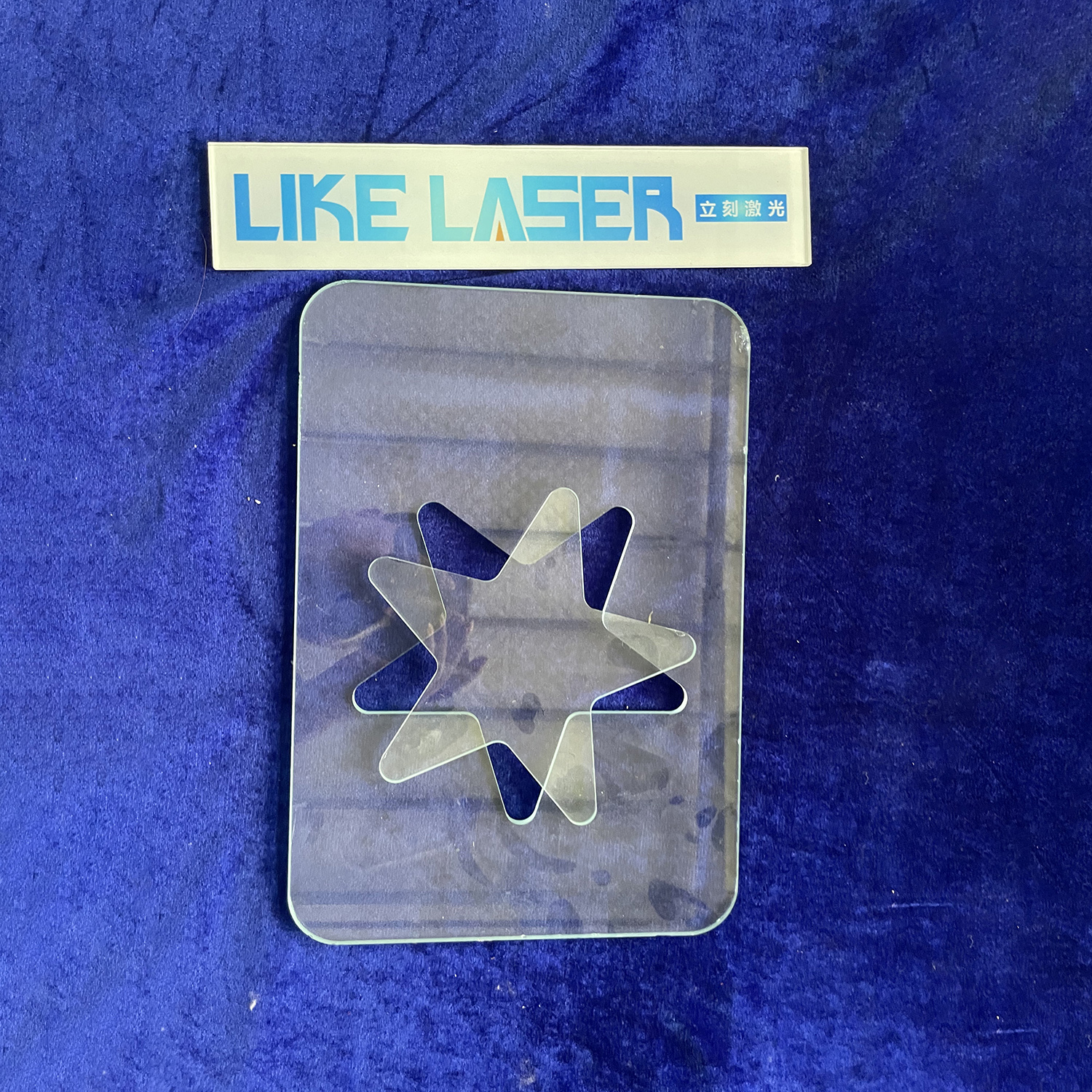

Irregular Cutting
for the shape cutting processing to no dead Angle cutting, can be cut to any shape material;
LIKELASER Software
Immediate laser ultra fast glass laser cutting machine, using independently developed AI control system
Guarantee
LIKE LASER warrants its products and parts against defects in materials or workmanship for two (2) years from the original date of receipt.
Advantages
LIKELASER ultra-fast glass laser cutting machine, using self-developed AI control system, high-endcustom picosecond light source, double drive linear motor, marble work surface, cutting oneprocessing, accuracy up to ± 2 microns. Compared with the traditional CNC/ water knifeprocessing has irreplaceable advantages, especially in the shape cutting, fine cutting,non-destructive cutting CNC, is completely incompetent, laser cutting is a non contact cutting, withsimple operation, automatic, no consumables, no pollution, no degree, no edge, low powerconsumption. High efficiency (cutting speed up to 15m/min), and the traditional CNC cutting thereare ring mirror pollution, bit loss, edge collapse, scrap rate is high, slow speed and other defects, and LIKELASER Jinway glass laser cutting machine to solve all the above problems at one time, greatly saving manufacturing costs for processing manufacturers, improve product profits.
Sollicitatie
Productparameters
Standard Size Laser Glass Cutting Machine | |||
Model | LK-GC7060D | LK-GC8060D | LK-GC1380A |
Size | 700*600mm | 800*600mm | 1300*800mm |
Workbench | 2 | 2 | 1 |
Standard Size Laser Glass Cutting Machine | |||
Model | LK-GC2010D | LK-GC2412D | LK-GC3020A |
Size | 2000*1000mm | 2400*1200mm | 3000*2000mm |
Workbench | 1 | 1 | 1 |
Cutting Light Source | ||
1 | Lasertype | Picosecond pulse laser(the seed source uses the world’s mainstream brands such as German Nlight) |
2 | Wave length | 1064nm, beam quality: M2<1.3 |
3 | Pulse length | <10PS; Pulse frequency:1Hz-1000kHz |
4 | Cooling mode | Cooling method: water cooling |
Segmented light source | ||
1 | Lasertype | CO2 |
2 | Wave length | 1064nm, beam quality: M2<1.3 |
3 | Pulse length | <30PS; Pulse frequency: 1Hz-1000kHz |
4 | Cooling mode | Cooling method: water cooling |
Cutting head | ||
1 | Focusing head | Bezier focus head |
2 | Number of cutting heads | Single head |
3 | Focusing spot | <2een |
Visual counterpoint system | ||
1 | Camera | 5 million CCD |
2 | illuminant | Ring-type light source with adjustable brightness |
Kwaliteitscontrole
Kwaliteit is onze belangrijkste missie en vormt de basis van de levensader van het bedrijf, en het is de belangrijkste factor om langdurige zakelijke relaties met klanten te onderhouden. Er wordt speciale aandacht besteed aan de kwaliteit van elke eenheid grootformaat lasermachine. Het standaard kwaliteitscontrolesysteem en het team zijn verantwoordelijk voor het verzekeren van de productkwaliteit in elk proces met verschillende instrumenten zoals laserinterferometer en laservermogensmeter. De laserinterferometer en lasercollimator worden gebruikt tijdens het mechanische assemblageproces. In het laserassemblageproces,de laservermogensmeter en de optische microscoop worden aangenomen.
Certificate/Factory Inspection
Elke machine is geslaagd voor de ISO CE IAF-certificering.
Onze fabriek
LIKE LASER werd in juli opgericht 2003 in Shijiazhuang, hoofdstad van de provincie Hebei, China. Zelfonderzoek en ontwikkeling van grote lasersystemen en chips Het is een van de grootste fabrikanten van laserapparatuur in Noord-China. The company’s main products are:Glass laser cutting machine,Mirror laser sandblasting machine, Mirror laser paint removal machine,Large format glass engraving machine. Having worked in the glass industry for many years.After 17 jaren van ontwikkeling, het bedrijf heeft de ISO90001 International Quality System-certificering behaald, EU CE-certificering en Amerikaanse certificering.
Packing And Shipment
1)Verpakking:Verpakkingsmachine voor hele films; antibotsingspakketrand; begassingvrije multiplex houten kist en pallets met ijzeren bindriem.2)Verzenden:Wij werken samen met het bedrijf wiens ervaring in het zeetransport de veiligheid van uw machines garandeert. Wij verzorgen ook treinvervoer, vooral naar Rusland, Oekraïne en andere binnenlanden.3)Betaling:Wij ondersteunen T/T, L/C, VISA, Mastercard-betalingsvoorwaarden met Alibaba Trade Assurance.
Clients / Visits
Van harte welkom u onze fabriek bezoekt!!!
Van harte welkom, u neemt rechtstreeks contact met ons op voor meer informatie!!!
Onze diensten
1. AankoopserviceLIKE LASER heeft een gespecialiseerd en efficiënt werkteam.Als u nieuw bent op de lasermachine, wij geven u een gespecialiseerde suggestie voor het hele werk .2. Shipping ServiceLIKE LASER have a specialized and independent department which just for arranging shipping for buyer’s goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .3.Installation ServiceInstallation Services are available with all LIKE LASER Company machines.We will dispatch technician to The Buyer’s factory to installation and preparation of machines.4.Clients Training ServiceLIKE LASER advises the buyer could send own technician come to our factory to learn how to operate machines.LIKE LASER Company technician will teach and train the learners hand by hand till he can operate machine by himself.5.After Sales ServiceLIKE LASER machines guarantee time is 2 year, behalve verbruiksartikelen;FAQVoordat u mij een vraag stuurt over onze grote lasermachine, it is better for you to provide me the following information1)Uw metalen of niet-metalen materiaalgrootte. Want in onze fabriek, we hebben verschillende modellen afhankelijk van het werkgebied.2)The thickness of glass
3)TPlease tell me your industry and product photos
