LK-C3020D Laser glass cutting machine
Equipment name: Laser glass cutting machine ;
Contact person: Gavin
Contact information:+8618232160688
Processing Ability Simple Show | |||||
Cutting speed m/min | Cutting Thickness | Cutting Format | Cutting Mode | Power Consumption/H | Consumables/day |
7-20M | 0-50MM | 600-3000MM | PS/CO2 | 4000W | 0 |
Scope of application:
1、reinforced and non-reinforced glass cutting, such as: mobile phone glass cover plate, car glass cover plate, camera glass cover plate.
2、sapphire glass cutting, such as: mobile sapphire cover plate, camera sapphire glass cover plate, sapphire light strip (LED light strip).
3、LCD glass cutting, such as: shaped LCD screen inverted R/U/C Angle, LCD screen cutting.
4、other optical glass cutting, such as: filter cutting, mirror cutting.
5、ordinary glass cutting, such as high borosilicate, quartz glass, white glass, car mirrors, kupaonsko staklo, itd.
6 、cutting surface screen: single-sided curve (1200-2000), double-sided curve (400-2000) (optional).
The Biggest Feature
Laser Source
The light source is a high-power picosecond laser, and the core devices such as the core seed source are provided by international first-line manufacturers, and the use is stable;
Cutting Head
non-contact cutting, autocratic glass cutting head, lens all imported from the United States, light spot fine, deep focus, minimum focus spot <2um, focal depth length up to 3mm, the maximum cutting thickness of 30mm and no edge breakage;
Cutting Platform
cutting platform, optical platform base using natural marble, after two fine grinding processing, accuracy level reached 00
Linear Motor+Magnetic Levitation
X/Y axis motor adopts linear motor, German digital grating ruler, Taiwan screw and guide rail, Israel drive, 24 hours of troublefree operation;
Vacuum Pump Suction
the use of high negative pressure vacuum pump adsorption products to ensure positioning stability, the cutting process of the material does not move, do not move;
CCD
device alignment CCD and telecentric vision lens, accurate identification of circle, cross and other Mark points;
Irregular Cutting
for the shape cutting processing to no dead Angle cutting, can be cut to any shape material;
LIKELASER Software
Immediate laser ultra fast glass laser cutting machine, using independently developed AI control system
Guarantee
LIKE LASER warrants its products and parts against defects in materials or workmanship for two (2) years from the original date of receipt.
Advantages
LIKELASER ultra-fast glass laser cutting machine, using self-developed AI control system, high-endcustom picosecond light source, double drive linear motor, marble work surface, cutting oneprocessing, accuracy up to ± 2 microns. Compared with the traditional CNC/ water knifeprocessing has irreplaceable advantages, especially in the shape cutting, fine cutting,non-destructive cutting CNC, is completely incompetent, laser cutting is a non contact cutting, withsimple operation, automatic, no consumables, no pollution, no degree, no edge, low powerconsumption. High efficiency (cutting speed up to 15m/min), and the traditional CNC cutting thereare ring mirror pollution, bit loss, edge collapse, scrap rate is high, slow speed and other defects, and LIKELASER Jinway glass laser cutting machine to solve all the above problems at one time, greatly saving manufacturing costs for processing manufacturers, improve product profits.

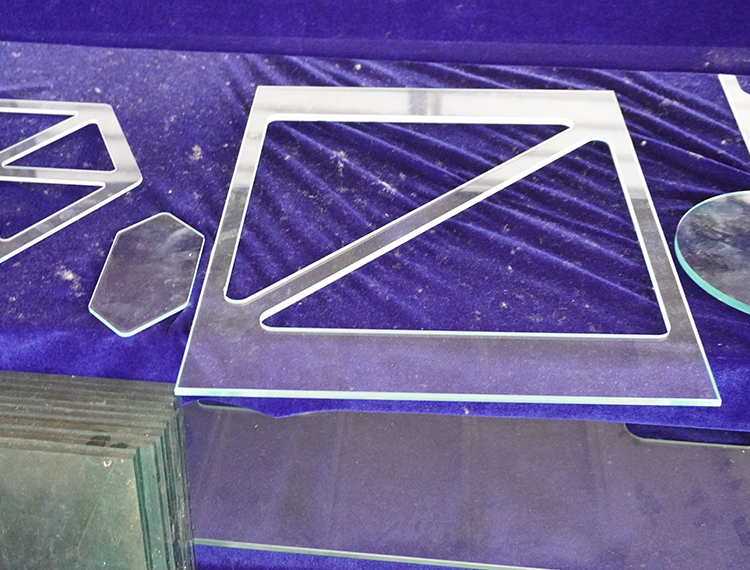

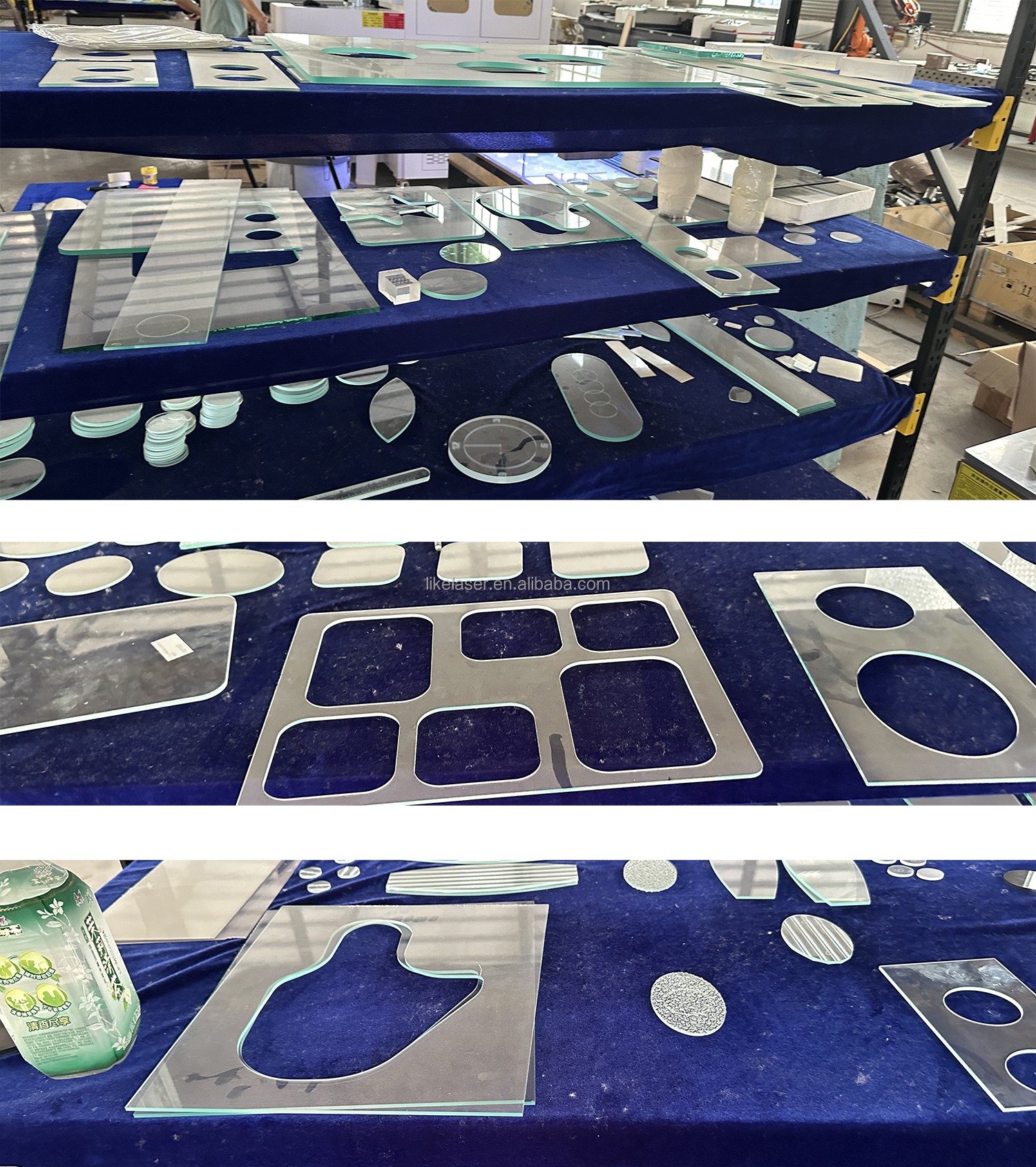

Primjena
Product Paramenters
Standard Size Laser Glass Cutting Machine | |||
Model | LK-GC7060D | LK-GC8060D | LK-GC1380A |
Size | 700*600mm | 800*600mm | 1300*800mm |
Workbench | 2 | 2 | 1 |
Standard Size Laser Glass Cutting Machine | |||
Model | LK-GC2010D | LK-GC2412D | LK-GC3020A |
Size | 2000*1000mm | 2400*1200mm | 3000*2000mm |
Workbench | 1 | 1 | 1 |
Cutting Light Source | ||
1 | Laser type | Picosecond pulse laser(the seed source uses the world’s mainstream brands such as German Nlight) |
2 | Wave length | 1064nm, beam quality: M2<1.3 |
3 | Pulse length | <10PS; Pulse frequency:1Hz-1000kHz |
4 | Cooling mode | Cooling method: water cooling |
Segmented light source | ||
1 | Laser type | CO2 |
2 | Wave length | 1064nm, beam quality: M2<1.3 |
3 | Pulse length | <30PS; Pulse frequency: 1Hz-1000kHz |
4 | Cooling mode | Cooling method: water cooling |
Cutting head | ||
1 | Focusing head | Bezier focus head |
2 | Number of cutting heads | Single head |
3 | Focusing spot | <2um |
Visual counterpoint system | ||
1 | Camera | 5 million CCD |
2 | illuminant | Ring-type light source with adjustable brightness |
Kontrola kvalitete
Kvaliteta je naša najvažnija misija koja podupire život tvrtke, i to je najvažniji čimbenik za održavanje dugoročnih poslovnih odnosa s kupcima. Posebna pažnja posvećena je kvaliteti svake jedinice laserskog stroja velike veličine. Standardni sustav kontrole kvalitete i tim odgovorni su za osiguranje kvalitete proizvoda u svakom procesu s različitim instrumentima poput laserskog interferometra i laserskog mjerača snage. Laserski interferometar i laserski kolimator koriste se kroz mehanički proces sklapanja. U procesu laserske montaže,usvojeni su laserski mjerač snage i optički mikroskop.
Certificate/Factory Inspection
Svaki stroj je prošao ISO CE IAF certifikat.
Naša tvornica
LIKE LASER osnovan je u srpnju 2003 u Shijiazhuangu, glavni grad provincije Hebei, Kina. Samostalno istraživanje i razvoj velikih laserskih sustava i čipova Jedan je od najvećih proizvođača laserske opreme u sjevernoj Kini. Glavni proizvodi tvrtke su:Glass laser cutting machine,Mirror laser sandblasting machine, Mirror laser paint removal machine,Large format glass engraving machine. Having worked in the glass industry for many years.After 17 godina razvoja, tvrtka je prošla ISO90001 međunarodni certifikat sustava kvalitete, EU CE certifikat i US certifikat.
Packing And Shipment
1)Packaging:Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.2)Shipping:We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also providetrain transport, especially to Russia, Ukraine and other inland countries.3)Payment:We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
Clients / Visits
Srdačno dobrodošli da posjetite našu tvornicu!!!
Srdačno dobrodošli kontaktirajte nas izravno za više informacija!!!
Naše usluge
1. Usluga kupnje LIKE LASER ima specijaliziran i učinkovit radni tim. Ako ste novi na laserskom stroju, dat ćemo vam specijalizirani prijedlog cijelog posla .2. Usluga dostave LIKE LASER ima specijalizirani i neovisni odjel koji samo organizira dostavu robe kupca. Radnici znaju T/T,L/C Items well.all Exported documents could be made perfectly .3.Installation ServiceInstallation Services are available with all LIKE LASER Company machines.We will dispatch technician to The Buyer’s factory to installation and preparation of machines.4.Clients Training ServiceLIKE LASER advises the buyer could send own technician come to our factory to learn how to operate machines.LIKE LASER Company technician will teach and train the learners hand by hand till he can operate machine by himself.5.After Sales ServiceLIKE LASER machines guarantee time is 2 year, osim potrošnih dijelova;FAQPrije nego što mi pošaljete upit o našem laserskom stroju velike veličine, it is better for you to provide me the following information1)Vaša veličina metalnog ili nemetalnog materijala. Jer u našoj tvornici, imamo različite modele prema radnom području.2)The thickness of glass
3)TPlease tell me your industry and product photos
